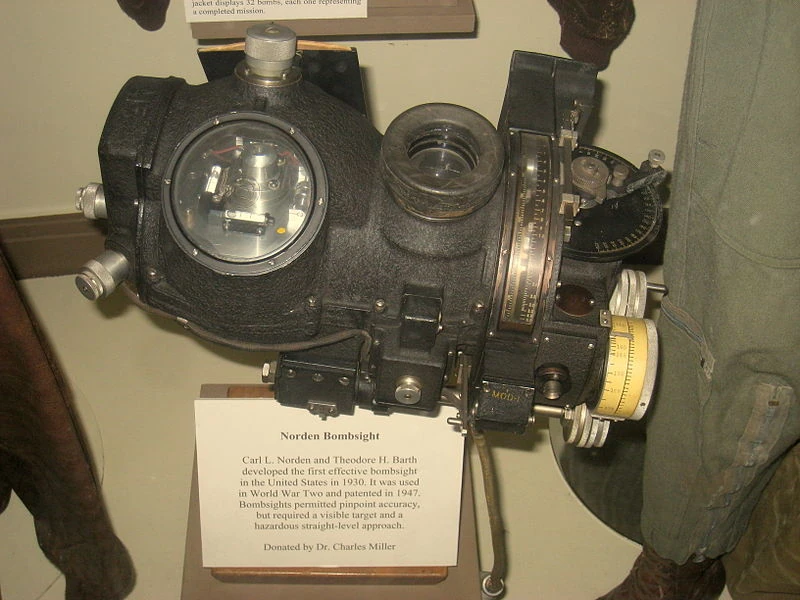

USAAF Norden Bombsight - Maintenance and Calibration Manual. This is probably the hardest Norden manual to locate since the manuals remained restricted long after WWII. None were allowed to be carried on the aircraft. Covers all aspects of the bombsight including M-6 stabilizer and M-3 sight. This is a description of the Norden bombsight, an electromechanical analog computer that was used to guide bombers to their targets. This illustration is from a 1945.

1. Description And Operation

1923 Norden MK XI Bombsight Prototype A bombsight is a device used by military aircraft to accurately drop. Bombsights are a feature of combat aircraft from on, first found on purpose-designed, and then moving to and modern as these aircraft took up the brunt of the bombing role. A bombsight has to estimate the path the bomb will take after release from the aircraft. The two primary forces during its fall are and, which make the path of the bomb through the air roughly.

There are additional factors such as changes in and that may be considered, but these are only a concern for bombs that spend a significant portion of a minute falling through the air. These effects can be minimized by reducing the fall time through low-level bombing or by increasing the speed of the bombs. These effects are combined in the.

However, low-level bombing also increases the danger to the bomber from ground-based defences, and accurate bombing from higher altitudes has always been desired. This has led to a series of increasingly sophisticated bombsight designs dedicated to high-altitude level bombing. Since their first application prior to World War I, bombsights have gone though several major revisions. The earliest systems were that were pre-set to an estimated fall angle. In some cases these consisted of nothing more than a series of nails hammered into a convenient spar, lines drawn on the aircraft, or visual alignments of certain parts of the structure.

These were replaced by the earliest custom-designed systems, normally iron sights that could be set based on the aircraft's airspeed and altitude. These early systems were replaced by the vector bombsights, which added the ability to measure and adjust for winds. Vector bombsights were useful for altitudes up to about 3,000 m and speeds up to about 300 km/h.

Starting in the 1930s, with the performance needed to 'solve' the equations of motion were incorporated into the new tachometric bombsights, the most famous being the. Later in, tachometric bombsights were often combined with systems to allow accurate bombing through clouds or at night. When post-war studies demonstrated that bomb accuracy was roughly equal when optically or radar guided, optical bombsights were generally removed and the role passed to dedicated radar bombsights. Finally, especially from the 1960s on, fully computerized bombsights were introduced, which combined the bombing with long-range navigation and mapping. Modern aircraft do not have a bombsight, instead using highly computerized systems that combine bombing, gunnery, missile fire and navigation into a single. These systems have the performance to calculate the bomb trajectory in as the aircraft manoeuvres, and add the ability to adjust for weather, relative altitude, relative speeds for moving targets, and climb or dive angle.

This makes them useful both for level bombing, as in earlier generations, and tactical missions formerly bombed by eye. The way the line of bombs falling from this B-26 goes toward the rear is due to drag. The aircraft's engines keep it moving forward at a constant speed, while the bombs slow down. From the bomber's perspective, the bombs trail behind the aircraft.

Description And Operation

Now consider the horizontal motion. At the instant it leaves the shackles, the bomb carries the forward speed of the aircraft with it. This motion is countered solely by drag, which starts to slow the forward motion.

As the forward motion slows, the drag force drops and this deceleration diminishes. The forward speed is never reduced entirely to zero.

If the bomb were not subject to drag, its path would be purely ballistic and it would impact at an easily calculable point, the vacuum range. In practice, drag means that the impact point is short of the vacuum range, and this real-world distance between dropping and impact is known simply as the range.

The difference between the vacuum range and actual range is known as the trail because the bomb appears to trail behind the aircraft as it falls. The trail and range differ for different bombs due to their individual aerodynamics, and typically have to be measured on a bombing range. The main problem in completely separating the motion into vertical and horizontal components is the terminal velocity.

Bombs are designed to fly with the nose pointed forward into the, normally through the use of fins at the back of the bomb. The drag depends on the of the bomb at any given instant.

If the bomb is released at low altitudes and speeds the bomb will not reach terminal velocity and its speed will be defined largely by how long the bomb has been falling. Finally, consider the effects of wind. The wind acts on the bomb through drag and is thus a function of the wind speed. This is typically only a fraction of the speed of the bomber or the terminal velocity, so it only becomes a factor if the bomb is dropped from very high altitudes so this small influence has enough time to act as the bomb falls.

The difference between the impact point and where it would have fallen if there had been no wind is known as drift, or cross trail. The bombsight problem In ballistics terms, it is traditional to talk of the calculation of aiming of ordnance as the solution. The bombsight problem is the calculation of the location in space where the bombs should be dropped in order to hit the target when all of the effects noted above are taken into account.

In the absence of wind, the bombsight problem is fairly simple. The impact point is a function of three factors, the aircraft's altitude, its forward speed, and the terminal velocity of the bomb. In many early bombsights, the first two inputs were adjusted by separately setting the front and back sights of an iron sight, one for the altitude and the other for the speed. Terminal velocity, which extends the fall time, can be accounted for by raising the effective altitude by an amount that is based on the bomb's measured ballistics. When windage is accounted for, the calculations become more complex. As the wind can operate in any direction, bombsights generally re-calculate the windage by converting it into the portions that act along the flight path and across it. In practice, it was generally simpler to have the aircraft fly in such a way to zero out any sideways motion before the drop, and thereby eliminate this factor.

This is normally accomplished using a common flying techniques known as. Bombsights are sighting devices that are pointed in a particular direction, or aimed. Although the solution outlined above returns a point in space, simple can be used to convert this point into an angle relative to the ground. The bombsight is then set to indicate that angle. The bombs are dropped when the target passes through the sights. The distance between the aircraft and target at that moment is the range, so this angle is often referred to as the range angle, although dropping angle, aiming angle, bombing angle and similar terms are often used as well. In practice, some or all of these calculations are carried out using angles and not points in space, skipping the final conversion.

Accuracy The accuracy of the drop is affected both by inherent problems like the randomness of the atmosphere or bomb manufacture, as well as more practical problems like how close to flat and level the aircraft is flying or the accuracy of its instruments. These inaccuracies compound over time, so increasing the altitude of the bomb run, thereby increasing the fall time, has a significant impact on the final accuracy of the drop. It is useful to consider a single example of a bomb being dropped on a typical mission. In this case we will consider the AN-M65 500 lbs General Purpose Bomb, widely used by the USAAF and RAF during World War II, with direct counterparts in the armouries of most forces involved. Ballistic data on this bomb can be found in 'Terminal Ballistic Data, Volume 1: Bombing'.

Against men standing in the open, the 500 lbs has a lethal radius of about 107 m (350 feet), but much less than that against buildings, perhaps 27 m (90 feet). The M65 will be dropped from a flying at 322 km/h (200 mph) at an altitude of 6096 m (20,000 feet) in a 42 km/h (25 mph) wind. Given these conditions, the M65 would travel approximately 1981 m (6,500 feet) forward before impact, for a trail of about 305 m (1000 feet) from the vacuum range, and impact with a velocity of 351 m/s (1150 fps) at an angle of about 77 degrees from horizontal. A 42 km/h (25 mph) wind would be expected to move the bomb about 91 m (300 feet) during that time. The time to fall is about 37 seconds.

Assuming errors of 5% in every major measurement, one can estimate those effects on accuracy based on the methodology and tables in the guide. A 5% error in altitude at 20,000 feet would be 1,000 feet, so the aircraft might be anywhere from 19 to 21,000 feet. According to the table, this would result in an error around 10 to 15 feet.

A 5% error in airspeed, 10 mph, would cause an error of about 15 to 20 feet. In terms of drop timing, errors on the order of one-tenth of a second might be considered the best possible.

In this case the error is simply the ground speed of the aircraft over this time, or about 30 feet. All of these are well within the lethal radius of the bomb.

The wind affects the accuracy of the bomb in two ways, pushing directly on the bomb while it falls, as well as changing the ground speed of the aircraft before the drop. In the case of the direct effects on the bomb, a measurement that has a 5% error, 1.25 mph, that would cause a 5% error in the drift, which would be 17.5 feet.

However, that 1.25 mph error, or 1.8 fps, would also be added to the aircraft's velocity. Over the time of the fall, 37 seconds, that would result in an error of 68 feet, which is at the outside limit of the bomb's performance. The measurement of the wind speed is a more serious concern. Early navigation systems generally measured it using a procedure that compares measured movement over the ground with the calculated movement using the aircraft instruments. The 's FAR Part 63 suggests 5 to 10% accuracy of these calculations, the US Air Force's AFM 51-40 gives 10%, and the US Navy's H.O. 216 at a fixed 20 miles or greater. Compounding this inaccuracy is that it is made using the instrument's airspeed indication, and as the airspeed in this example is about 10 times that of the wind speed, its 5% error can lead to great inaccuracies in wind speed calculations.

Eliminating this error through the direct measurement of ground speed (instead of calculating it) was a major advance in the tachometric bombsights of the 1930s and 40s. Finally, consider errors of the same 5% in the equipment itself, that is, an error of 5% in the setting of the range angle, or a similar 5% error in the levelling of the aircraft or bombsight. For simplicity, consider that 5% to be a 5 degree angle. Using simple trigonometry, 5 degrees at 20,000 feet is approximately 1,750 feet, an error that would place the bombs far outside their lethal radius.

In tests, accuracies of 3 to 4 degrees were considered standard, and angles as high as 15 degrees were not uncommon. Given the seriousness of the problem, systems for automatic levelling of bombsights was a major area of study before World War II, especially in the US.

Early systems. IA, the first widely produced vector bombsight. The drift wires are visible on the right, the windage calculator on the left, and the altitude scale in the middle (vertical). The actual sights are the white rings near the top of the altitude slider and while dots mid-way along the drift wires. The drift wires are normally taut, this example is almost a century old. Calculating the effects of an arbitrary wind on the path of an aircraft was already a well-understood problem in, one requiring basic. Wimperis was very familiar with these techniques, and would go on to write a seminal introductory text on the topic.

The same calculations would work just as well for bomb trajectories, with some minor adjustments to account for the changing velocities as the bombs fell. Even as the Drift Sight was being introduced, Wimperis was working on a new bombsight that helped solve these calculations and allow the effects of wind to be considered no matter the direction of the wind or the bomb run. The result was the (CSBS), called 'the most important bomb sight of the war'.

Dialling in the values for altitude, airspeed and the speed and direction of the wind rotated and slid various mechanical devices that solved the vector problem. Once set up, the bomb aimer would watch objects on the ground and compare their path to thin wires on either side of the sight.

If there was any sideways motion, the pilot could slip-turn to a new heading in an effort to cancel out the drift. A few attempts were typically all that was needed, at which point the aircraft was flying in the right direction to take it directly over the drop point, with zero sideways velocity. The bomb aimer (or pilot in some aircraft) then sighted through the attached iron sights to time the drop. The CSBS was introduced into service in 1917 and quickly replaced earlier sights on aircraft that had enough room - the CSBS was fairly large. Versions for different speeds, altitudes and bomb types were introduced as the war progressed.

After the war, the CSBS continued to be the main bombsight in British use, thousands were sold to foreign air forces, and numerous versions were created for production around the world. A number of experimental devices based on a variation of the CSBS were also used, notably the US's Estoppey D-1 sight, developed shortly after the war, and similar versions from many other nations. These 'vector bombsights' all shared the basic vector calculator system and drift wires, differing primarily in form and optics. As bombers grew and multi-place aircraft became common, it was no longer possible for the pilot and bombardier to share the same instrument, and hand signals were no longer visible if the bombardier was below the pilot in the nose.

A variety of solutions using dual optics or similar systems were suggested in the post-war era, but none of these became widely used. This led to the introduction of the, an electrically-driven pointer which the bomb aimer used to indicate corrections from a remote location in the aircraft. Vector bombsights remained the standard by most forces well into the, and was the main sight in British service until 1942.

This was in spite of the introduction of newer sighting systems with great advantages over the CSBS, and even newer versions of the CSBS that failed to be used for a variety of reasons. The later versions of the CSBS, eventually reaching the Mark X, included adjustments for different bombs, ways to attack moving targets, systems for more easily measuring winds, and a host of other options. Tachometric bombsights. Bomb aimers window and bomb sight in the nose of an. One of the main problems using vector bombsights was the long straight run needed before dropping the bombs. This was needed so the pilot would have enough time to accurately account for the effects of wind, and get the proper flight angle set up with some level of accuracy.

If anything changed during the bomb run, especially if the aircraft had to maneuver in order to avoid defences, everything had to be set up again. Additionally, the introduction of monoplane bombers made the adjustment of the angles more difficult, because they were not able to slip-turn as easily as their earlier biplane counterparts. They suffered from an effect known as ' that made them more difficult to turn and tended to oscillate after levelling.

This further reduced the time the bomb aimer had to adjust the path. One solution to this later problem had already been used for some time, the use of some sort of system to keep the bombsight pointed roughly downward during maneuvering or being blown around by wind gusts. Experiments as early as the 1920s had demonstrated that this could roughly double the accuracy of bombing. The US carried out an active program in this area, including Estoppey sights mounted to weighted and 's experiments with US versions of the CSBS mounted to what would today be called an. These same developments led to the introduction of the first useful, which could be used to directly dial in the required path and have the aircraft fly to that heading with no further input. A variety of bombing systems using one or both of these systems were considered throughout the 1920s and 30s.

During the same period, a separate line of development was leading to the first reliable. These could be used to replace a complex table of numbers with a carefully shaped -like device, and the manual calculation though a series of gears or slip wheels. Originally limited to fairly simple calculations consisting of additions and subtractions, by the 1930s they had progressed to the point where they were being used to solve. For bombsight use, such a calculator would allow the bomb aimer to dial in the basic aircraft parameters - speed, altitude, direction, and known atmospheric conditions - and the bomb sight would automatically calculate the proper aim point in a few moments. Some of the traditional inputs, like airspeed and altitude, could even be taken directly from the aircraft instruments, eliminating operational errors.

Although these developments were well known within the industry, only the and put any concerted effort into development. During the 1920s, the Navy funded development of the while the Army funded development of the.

Both systems were generally similar; a bomb sight consisting of a small telescope was mounted on a stabilizing platform to keep the sighting head stable. A separate mechanical computer was used to calculate the aim point. The aim point was fed back to the sight, which automatically rotated the telescope to the correct angle to account for drift and aircraft movement, keeping the target still in the view. When the bomb aimer sighted through the telescope, he could see any residual drift and relay this to the pilot, or later, feed that information directly into the. Simply moving the telescope to keep the target in view had the side effect of fine-tuning the windage calculations continuously, and thereby greatly increasing their accuracy. For a variety of reasons, the Army dropped their interest in the Sperry, and features from the Sperry and Norden bombsights were folded into new models of the Norden.

The Norden then equipped almost all US high-level bombers, most notably the. In tests, these bombsights were able to generate fantastic accuracy.

In practice, however, operational factors seriously upset them, to the point that pinpoint bombing using the Norden was eventually abandoned. Although the US put the most effort into development of the tachometric concept, they were also being studied elsewhere.

In the UK, work on the Automatic Bomb Sight (ABS) had been carried on since the mid-1930s in an effort to replace the CSBS. However, the ABS did not include stabilization of the sighting system, nor the Norden's autopilot system. In testing the ABS proved to be too difficult to use, requiring long bomb runs to allow the computer time to solve the aim point. When complained that even the CSBS had too long a run-in to the target, efforts to deploy the ABS ended. For their needs they developed a new vector bombsight, the.

XIV featured a stabilizing platform and aiming computer, but worked more like the CSBS in overall functionality - the bomb aimer would set the computer to move the sighting system to the proper angle, but the bombsight did not track the target or attempt to correct the aircraft path. The advantage of this system was that it was dramatically faster to use, and could be used even while the aircraft was manoeuvring, only a few seconds of straight-line flying were needed before the drop.

Facing a lack of production capability, Sperry was contracted to produce the Mk. XIV in the US, calling it the Sperry T-1. Both the British and Germans would later introduce Norden-like sights of their own.

Based at least partially on information about the Norden passed to them through the, the developed the. The basic mechanism was almost identical to the Norden, but much smaller. In certain applications the Lotfernrohr 7 could be used by a single-crew aircraft, as was the case for the, the world's first operational jet bomber. Late in the war the RAF had the need for accurate high-altitude bombing and introduced a stabilized version of the earlier ABS, the hand-built (SABS).

It was produced in such limited numbers that it was at first used only by the famed, The Dambusters. All of these designs collectively became known as tachometric sights, 'tachometric' referring to the timing mechanisms which counted the rotations of a screw or gear that ran at a specified speed. Radar bombing and integrated systems. The AN/APS-15 radar bombing system, a US version of the British H2S. In the pre-World War II era there had been a long debate about the relative merits of daylight versus night-time bombing.

At night the bomber is virtually invulnerable (until the introduction of ) but finding its target was a major problem. In practice, only large targets such as cities could be attacked. During the day the bomber could use its bombsights to attack point targets, but only at the risk of being attacked by enemy and. During the early 1930s the debate had been won by the night-bombing supporters, and the RAF and Luftwaffe started construction of large fleets of aircraft dedicated to the night mission. As ', these forces were strategic in nature, largely a deterrent to the other force's own bombers.

However, new engines introduced in the mid-1930s led to much larger bombers that were able to carry greatly improved defensive suites, while their higher operational altitudes and speeds would render them less vulnerable to the defences on the ground. Policy once again changed in favour of daylight attacks against military targets and factories, abandoning what was considered a cowardly and defeatist night-bombing policy.

In spite of this change, the Luftwaffe continued to put some effort into solving the problem of accurate navigation at night. This led to the during the opening stages of the war. The RAF returned in force in early 1942 with similar systems of their own, and from that point on, systems of increasing accuracy allowed bombing in any weather or operational conditions. The system, first used operationally in early 1943, offered real-world accuracies on the order of 35 yards, much better than any optical bombsight.

The introduction of the British further improved the bomber's abilities, allowing direct attack of targets without the need of remote radio transmitters, which had range limited to the line-of-sight. By 1943 these techniques were in widespread use by both the RAF and USAAF, leading to the and then a series of improved versions like the and used on the.

These early systems operated independently of any existing optical bombsight, but this presented the problem of having to separately calculate the trajectory of the bomb. In the case of Oboe, these calculations were carried out before the mission at the ground bases. But as daylight visual bombing was still widely used, conversions and adaptations were quickly made to repeat the radar signal in the existing bombsights, allowing the bombsight calculator to solve the radar bombing problem.

For instance, the was used to combine the output from the AN/APQ-7 with the Norden, allowing the bomb aimer to easily check both images to compare the aim point. Analysis of the results of bombing attacks carried out using radio navigation or radar techniques demonstrated accuracy was essentially equal for the two systems - night time attacks with Oboe were able to hit targets that the Norden could not during the day. With the exception of operational considerations - limited resolution of the radar and limited range of the navigation systems - the need for visual bombsights quickly disappeared. Designs of the late-war era, like the and retained their optical systems, but these were often considered secondary to the radar and radio systems. In the case of the Canberra, the optical system only existed due to delays in the radar system becoming available.

Postwar developments The strategic bombing role was following an evolution over time to ever-higher, ever-faster, ever-longer-ranged missions with ever-more-powerful weapons. Although the tachometric bombsights provided most of the features needed for accurate bombing, they were complex, slow, and limited to straight-line and level attacks. In 1946 the asked the Army Air Forces Scientific Advisory Group to study the problem of bombing from jet aircraft that would soon be entering service. They concluded that at speeds over 1,000 knots, optical systems would be useless - the visual range to the target would be less than the range of a bomb being dropped at high altitudes and speeds.

At the attack ranges being considered, thousands of miles, radio navigation systems would not be able to offer both the range and the accuracy needed. This demanded radar bombing systems, but existing examples did not offer anywhere near the required performance. At the stratospheric altitudes and long 'sighting' ranges being considered, the radar antenna would need to be very large to offer the required resolution, yet this ran counter for the need to develop an antenna that was as small as possible in order to reduce drag. They also pointed out that many targets would not show up directly on the radar, so the bombsight would need the ability to drop at points relative to some landmark that did appear, the so-called 'offset aiming points'. Finally, the group noted that many of the functions in such a system would overlap formerly separate tools like the navigation systems.

They proposed a single system that would offer mapping, navigation, autopilot and bomb aiming, thereby reducing complexity, and especially the needed space. Such a machine first emerged in the form of the, and later the 'K-System', the. Through the 1950s and 1960s, radar bombing of this sort was common and the accuracy of the systems were limited to what was needed to support attacks by - a (CEP) of about 3,000 feet was considered adequate. As mission range extended to thousands of miles, bombers started incorporating and to allow accurate navigation when far from land.

These systems quickly improved in accuracy, and eventually became accurate enough to handle the bomb dropping without the need for a separate bombsight. This was the case for the 1,500 foot accuracy demanded of the, which lacked any sort of conventional bombsight. Modern systems.

This section does not any. Unsourced material may be challenged and.

(November 2011) During the the weapon of choice was a nuclear one, and accuracy needs were limited. Development of tactical bombing systems, notably the ability to attack point targets with conventional weapons that had been the original goal of the Norden, was not considered seriously. Thus when the US entered the, their weapon of choice was the equipped with the Norden.

Such a solution was inadequate. At the same time, the ever-increasing power levels of new jet engines led to with bomb loads similar to heavy bombers of a generation earlier. This generated demand for a new generation of greatly improved bombsights that could be used by a single-crew aircraft and employed in fighter-like tactics, whether high-level, low-level, in a dive towards the target, or during hard maneuvering. A specialist capability for also developed in order to allow aircraft to escape the blast radius of their own, something that required only middling accuracy but a very different trajectory that initially required a dedicated bombsight.

As electronics improved, these systems were able to be combined together, and then eventually with systems for aiming other weapons. They may be controlled by the pilot directly and provide information through the or a video display on the instrument panel. The definition of bombsight is becoming blurred as 'smart' bombs with, such as or those using replace 'dumb'. See also. (USAAF). (RAF). (RAF) less accurate, for area bombing.
